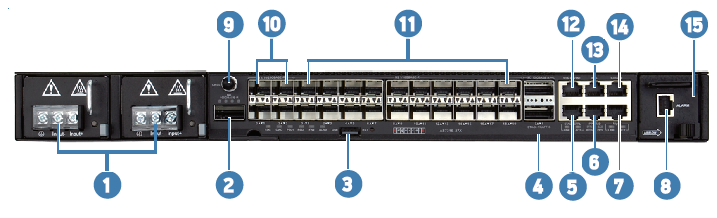

1 | Power Supply | 9 | GPS antenna port |
2 | 1 x 100G QSFP28 port | 10 | 4 x 25 Gb/s SFP28 |
3 | USB storage port | 11 | 20 x 1G/10G SFP+ |
4 | 2 x 100 Gb/s QSFP28 stacking port | 12 | Stack Sync RJ-45 port |
5 | Stack Control RJ-45 | 13 | BITS port (pulse per second) |
6 | TOD RJ-45 port | 14 | RJ-45 console port |
7 | Management port | 15 | Fan tray |
8 | Fan alarm RJ-45 port | | |
Press release:March 4, 2020
This is a cell site gateway which means it has hardware for IEEE1588 timing and deep buffers. 48V DC power supplies are shown. AC power supplies are available.
There is a data sheet.
A Presentation to OCP was part of its submission package.
|
